banner

Installation:

Usage: sudo ./install.sh [OPTIONS...]

Options: Description:
-b, --boot Install grub theme into /boot/grub/themes
-t, --theme theme variant(s) [tela/vimix/stylish/whitesur] (default is tela)"
-i, --icon icon variant(s) [color/white/whitesur] (default is color)"
-s, --screen screen resolution variant(s) [1080p/2k/4k/ultrawide/ultrawide2k] (default is 1080p)"
-r, --remove [THEME] Uninstall selected theme
-h, --help Show this help

If no options are used, a user interface dialog will show up instead

Examples:

  • Install Tela theme on 2k display device:

    • sudo ./install.sh -t tela -s 2k
  • Install Tela theme into /boot/grub/themes:

    • sudo ./install.sh -b -t tela
  • Uninstall Tela theme:

    • sudo ./install.sh -r -t tela

Issues / tweaks:

Correcting display resolution:

  • On the grub screen, press c to enter the command line
  • Enter vbeinfo or videoinfo to check available resolutions
  • Open /etc/default/grub, and edit GRUB_GFXMODE=[height]x[width]x32 to match your resolution
  • Finally, run grub-mkconfig -o /boot/grub/grub.cfg to update your grub config

Setting a custom background:

  • Make sure you have imagemagick installed, or at least something that provides convert
  • Find the resolution of your display, and make sure your background matches the resolution
    • (1920x1080 -> --1080p, 2560x1080 -> --ultrawide, 2560x1440 -> --2k, 3440x1440 -> --ultrawide2k, 3840x2160 -> --4k)
  • Place your custom background inside the root of the project, and name it background.jpg
  • Run the installer like normal, but with -s [YOUR_RESOLUTION] and -t [THEME] and -i [ICON]
    • Make sure to replace [YOUR_RESOLUTION] with your resolution and [THEME] with the theme

Contributing:

  • If you made changes to icons, or added a new one:
    • Delete the existing icon, if there is one
    • Run cd assets; ./render-all.sh
  • Create a pull request from your branch or fork
  • If any issues occur, report then to the issue page

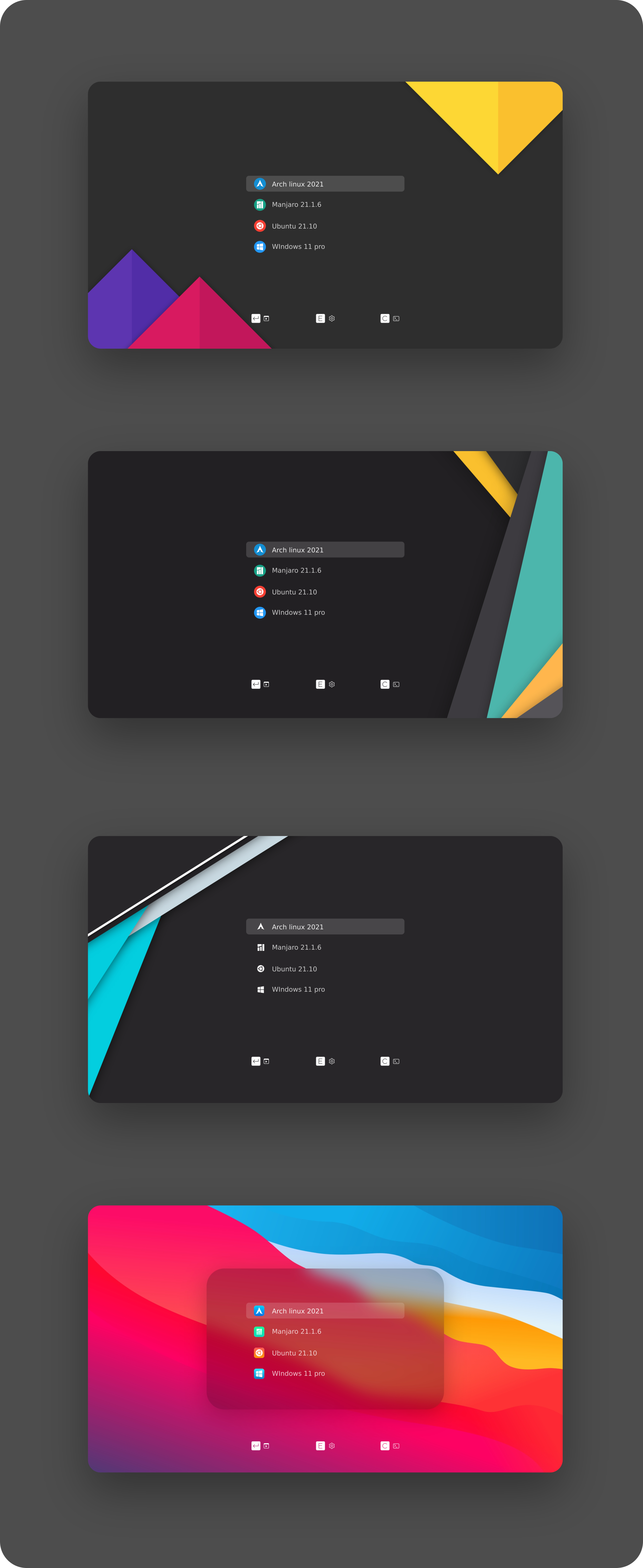

Preview:

Images shown: tela/vimix/stylish/whitesur preview
